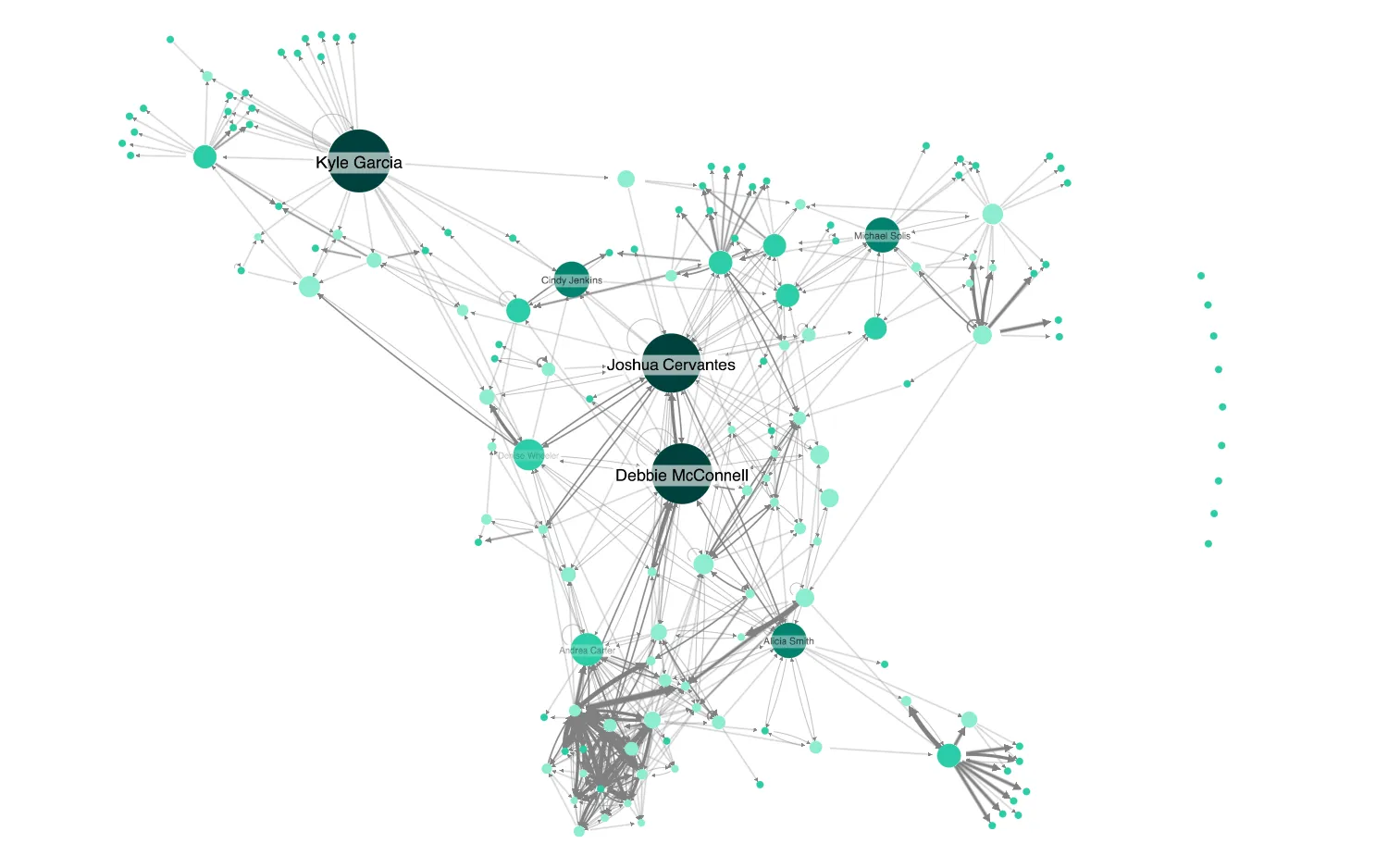

Click on the buttons above the chart to style nodes based on different centrality measures.
Each centrality measure shows different characteristics of a network.
You must import each centrality method from the ReGraph analysis module. Each method is fully typed.
See also
import React, { useState } from "react";
import { createRoot } from "react-dom/client";
import has from "lodash/has";
import mapValues from "lodash/mapValues";
import max from "lodash/max";
import min from "lodash/min";
import values from "lodash/values";
import { Chart, type Index, type Item, type Items, type Link, type Node } from "regraph";
import { betweenness, pageRank } from "regraph/analysis";
import { colorPicker, data, linkWidth } from "./data";
import { style } from "@ci/theme/rg/js/storyStyles";
import "@ci/theme/rg/css/button.css";
import "@ci/theme/rg/css/layout.css";
type Scores = Index<number>;
interface Props {
items: Items;
}
function isNode(item: Item): item is Node {
return !has(item, "id1") || !has(item, "id2");
}
export const Demo = () => <Analysis items={data().items} />;
function Analysis(props: Props) {
const { items } = props;
const [scores, setScores] = useState<Scores>({});
const [layout] = useState<Chart.LayoutOptions>({ tightness: 4 });
const reset = () => {
setScores({});
};
const selectPageRank = () => {
pageRank(items, { value: "count" }).then((newScores) => setScores(normalize(newScores)));
};
const selectBetweenness = () => {
betweenness(items, { value: "count" }).then((newScores) => setScores(normalize(newScores)));
};
const styledItems = () => {
return mapValues(items, (item, id) => {
if (isNode(item)) {
const node: Node = { ...item };
if (scores[id]) {
// if we are in an analysis state then use the colors and sizes from that
node.size = scores[id] * 6 + 1;
node.color = colorPicker(scores[id]);
} else {
// otherwise just use a neutral color for the nodes
node.color = style.primary1.color;
}
return node;
}
const link = { ...item } as Link;
link.width = linkWidth(link.data.count);
return link;
});
};
return (
<div className="story">
<div className="options">
<button key="reset" type="button" onClick={reset}>
Reset
</button>
<button key="pageRank" type="button" onClick={selectPageRank}>
PageRank
</button>
<button key="betweenness" type="button" onClick={selectBetweenness}>
Betweenness
</button>
</div>
<div className="chart-wrapper">
<Chart items={styledItems()} layout={layout} animation={{ animate: true, time: 950 }} />
</div>
</div>
);
}
function normalize(scores: Scores): Scores {
const v = values(scores);
const minimum = min(v) || 0;
const maximum = max(v) || 0;
return mapValues(scores, (value) => {
if (maximum === minimum) {
return minimum;
}
return (value - minimum) / (maximum - minimum);
});
}
const root = createRoot(document.getElementById("regraph"));
root.render(<Demo />);import { style } from "@ci/theme/rg/js/storyStyles";
