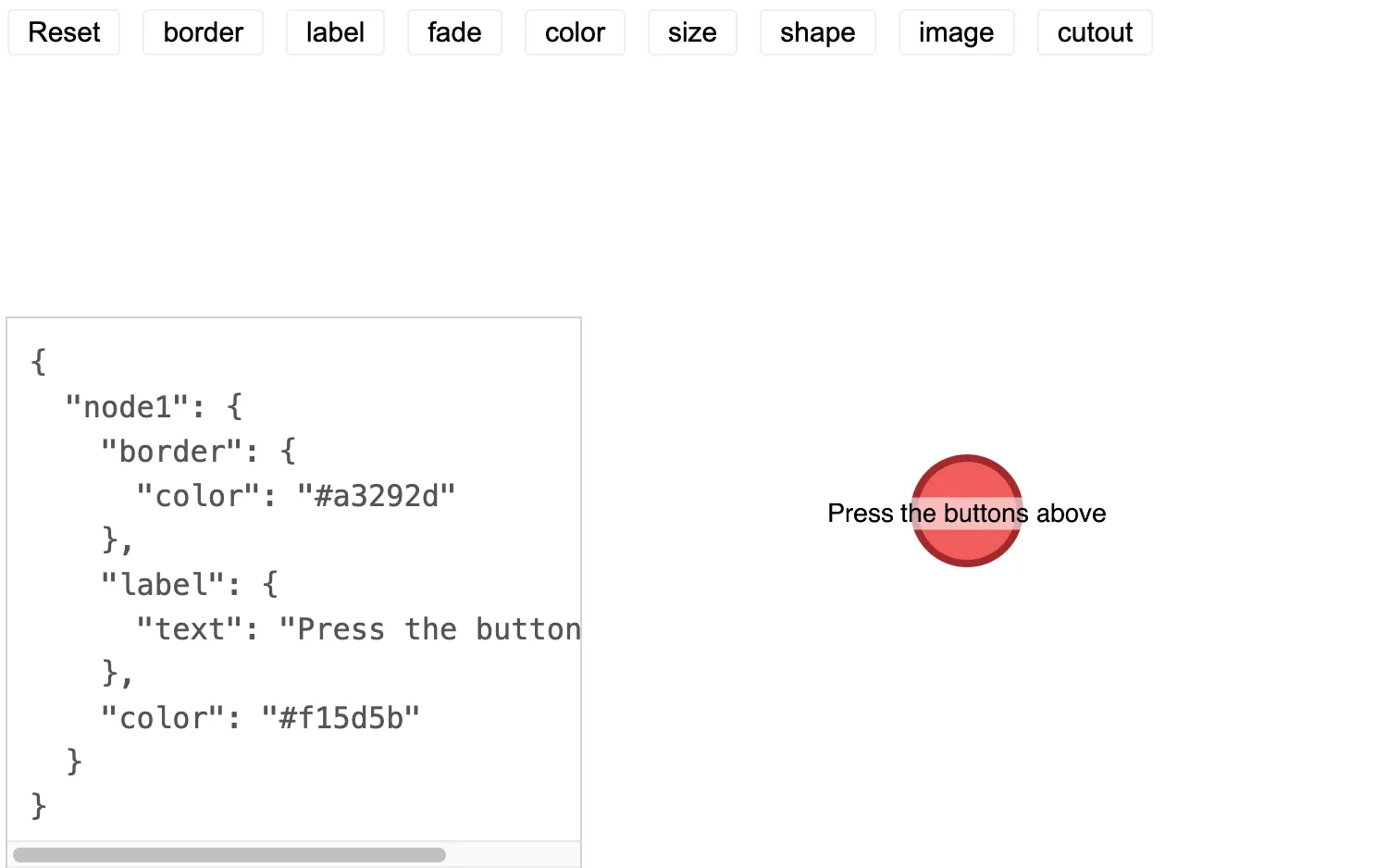

Node

import React from "react";
import { createRoot } from "react-dom/client";

import mapValues from "lodash/mapValues";
import pickBy from "lodash/pickBy";
import { Chart } from "regraph";

import { style } from "@ci/theme/rg/js/storyStyles";

import "@ci/theme/rg/css/properties.css";
import "@ci/theme/rg/css/button.css";

const regraphImage = "/img/regraph.png";

export const Demo = () => <NodeStyle />;

const { colorArrays } = style;

const nodeProps = {
  border: {
    values: [
      { color: colorArrays.dark[0] },
      { color: colorArrays.dark[1] },
      { color: colorArrays.dark[2] },
      { color: colorArrays.dark[3] },
      { width: 6, color: colorArrays.dark[0] },
      { width: 6, color: colorArrays.dark[1] },
      { width: 6, color: colorArrays.dark[2] },
      { width: 6, color: colorArrays.dark[3] },
      { width: 10, color: colorArrays.dark[0] },
      { width: 10, color: colorArrays.dark[1] },
      { width: 10, color: colorArrays.dark[2] },
      { width: 10, color: colorArrays.dark[3] },
      { lineStyle: "dashed", width: 10, color: colorArrays.dark[0] },
      { lineStyle: "dashed", width: 10, color: colorArrays.dark[1] },
      { lineStyle: "dashed", width: 10, color: colorArrays.dark[2] },
      { lineStyle: "dashed", width: 10, color: colorArrays.dark[3] },
      undefined,
    ],
    label: "Border",
  },
  label: {
    values: [
      { text: "Press the buttons above" },
      { text: "Bold label", bold: true },
      { text: "Color 1", color: colorArrays.dark[0] },
      { text: "Color 2", color: colorArrays.dark[1] },
      { text: "Color 3", color: colorArrays.dark[2] },
      { text: "Background color 1", backgroundColor: colorArrays.transparent[0] },
      { text: "Background color 2", backgroundColor: colorArrays.transparent[1] },
      { text: "Background color 3", backgroundColor: colorArrays.transparent[2] },
      {
        text: "Font size: 16",
        fontSize: 16,
      },
      {
        text: "Font size: 20",
        fontSize: 20,
      },
      [
        {
          text: "Not centered",
          position: "s",
        },
      ],
      {
        text: "Sans Serif",
        fontFamily: "sans serif",
      },
      {
        text: "Comic Sans",
        fontFamily: "comic sans ms",
      },
      { text: "Default font" },
      undefined,
    ],
    label: "Node label",
  },
  fade: { values: [undefined, true], label: "Fade" },
  color: { values: [...colorArrays.standard, undefined], label: "Fill color" },
  size: { values: [undefined, 2, 4, 0.5], label: "Size" },
  shape: { values: [undefined, "box"], label: "shape" },
  image: { values: [undefined, regraphImage], label: "image url" },
  cutout: { values: [undefined, true], label: "Cut out image (circle)" },
};

class NodeStyle extends React.PureComponent {
  constructor(props) {
    super(props);
    this.state = { ...mapValues(nodeProps, () => 0) };
  }

  update = (id) => {
    const { [id]: index } = this.state;
    const { [id]: property } = nodeProps;
    const { values } = property;
    let result = index + 1;
    if (result > values.length - 1) {
      result = 0;
    }
    this.setState({ [id]: result });
  };

  reset = () => {
    this.setState({ ...mapValues(nodeProps, () => 0) });
  };

  render = () => {
    const node1 = pickBy(
      mapValues(nodeProps, (value, key) => {
        const { [key]: index } = this.state;
        const newValue = value.values[index || 0];
        if (typeof newValue === "function") {
          return newValue(this.state);
        }
        return newValue;
      }),
      (value) => value !== undefined
    );

    return (
      <div style={{ width: "100%", height: "100%" }}>
        <Chart
          items={{ node1 }}
          animation={{ animate: true, time: 250 }}
          options={{ fit: "all", navigation: false, overview: false }}
        />
        <div style={{ position: "absolute", top: 0, left: 0 }}>
          <button type="button" onClick={this.reset}>
            Reset
          </button>
          {Object.keys(nodeProps)
            .filter((key) => key !== "ci") // ci property is controlled by u property
            .map((key) => (
              <button
                type="button"
                title={nodeProps[key].label}
                key={key}
                onClick={() => this.update(key)}
              >
                {key}
              </button>
            ))}
        </div>
        <pre className="properties">{JSON.stringify({ node1 }, null, 2)}</pre>
      </div>
    );
  };
}

const root = createRoot(document.getElementById("regraph"));
root.render(<Demo />);

<!doctype html>
<html>
  <body>
    <div id="regraph" style="height: 100vh"></div>
    <script type="module" src="./code.jsx"></script>
  </body>
</html>
