Overview

To help with visual analysis of large datasets, KronoGraph offers the option to aggregate individual events into a heatmap. In the heatmap view, individual cells span periods of time in the timeline.

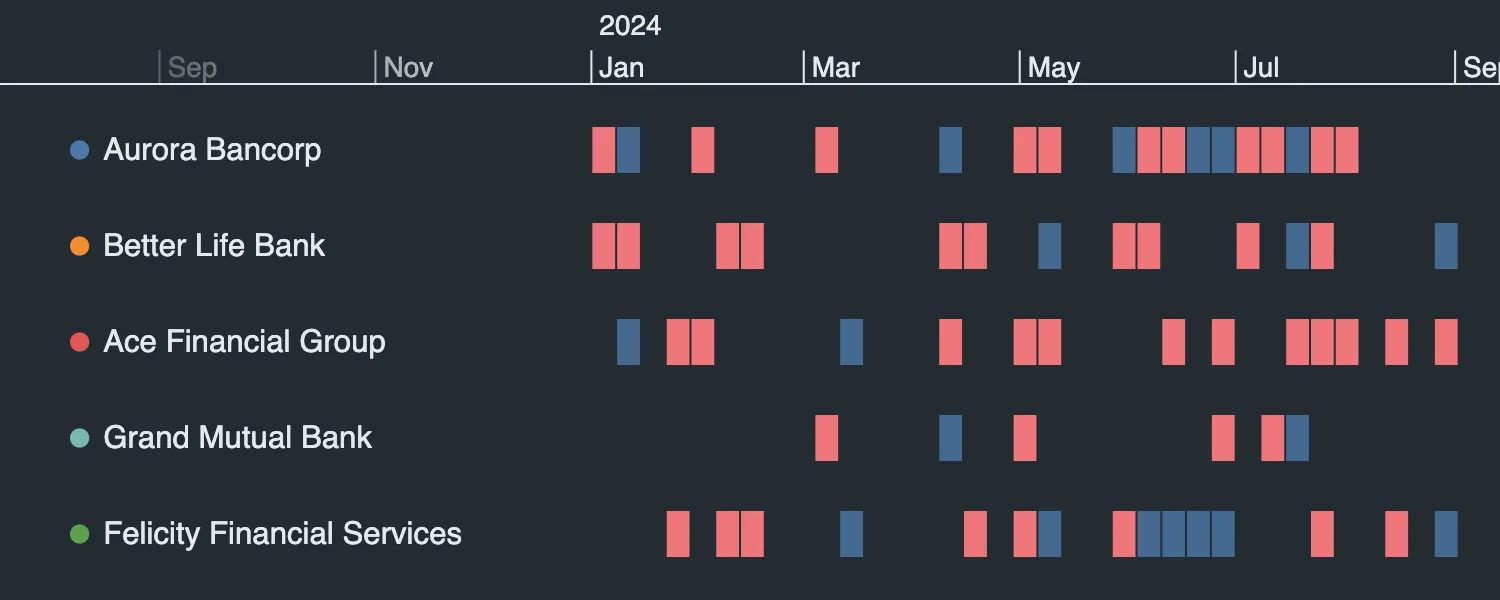

By default, the heatmap cell colors are based on the colors of underlying events and the cell color alpha values (that is, transparency) represent the event count. Customize your heatmaps using Heatmap Values and Heatmap Colors.

Heatmap Main

The heatmap view shows when there are more than 100 events in the active range. You can change the default number of events with the heatmapThreshold option.

The heatmapDirection option allows you to control how the heatmap shows entity and event connections. Three options are provided: any (the default), from and to.

For example, here we see a number of entities and events.
With `any` selected the heatmap will show a cell for all underlying event directions.
With `from` selected, the heatmap will show cells for entity rows that have events going from them.
With `to` selected, the heatmap will show cells for entity rows that have events going to them.

Additional options to style the heatmap include heatmapPadding and showLines. Both can be seen in the Styling the Timeline story.

For more examples, see the Heatmap section in our storybook.

Heatmap Values

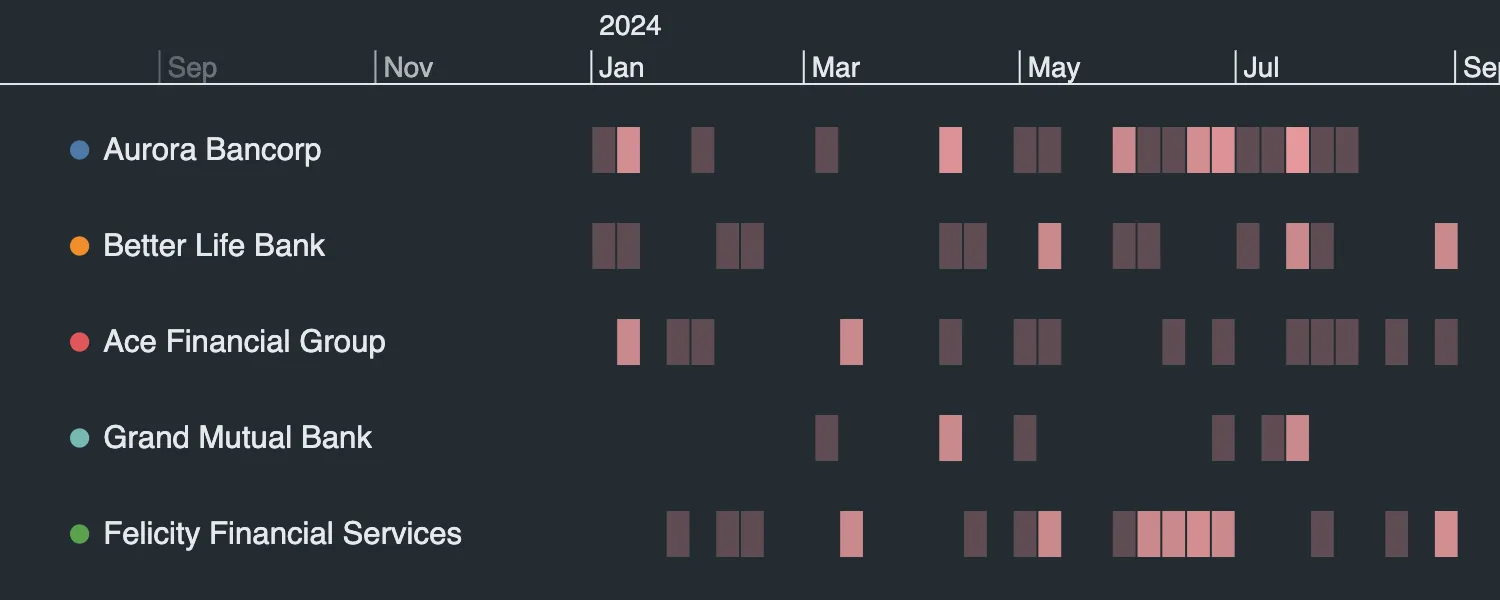

You can set a custom value to be used by the heatmap instead of the event count to determine the color of the cells.

Specify this property with the heatmapValue option:

timeline.options({
  events: {
    heatmapValue: 'amount',
  }
});

options{{
  events: {
    heatmapValue: 'amount',
  }
}}

The custom value is defined in the Event object:

const events = {
  event1: {
    entityIds: ['Person 1', 'Person 2'],
    time:  new Date(2025, 7, 14, 9, 27),
    data: {
      amount: 50,
    },
  },
};

const events = {
  event1: {
    entityIds: ['Person 1', 'Person 2'],
    time:  new Date(2025, 7, 14, 9, 27),
    data: {
      amount: 50,
    },
  },
};

Heatmap Colors

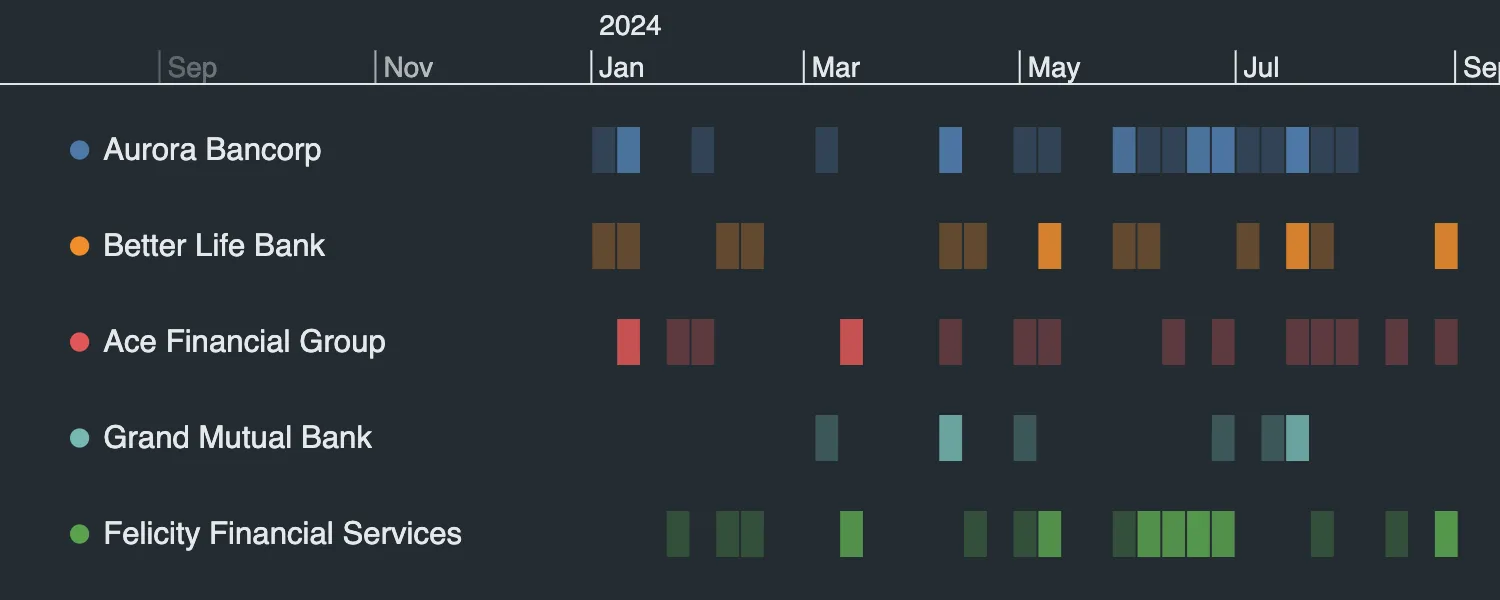

KronoGraph also provides heatmapColor options that allow you choose a color scheme for your heatmap.

The default setting uses the event color for the heatmap cells (or the entity color if the events don't have a color assigned). The alpha value is based on the number of events or Heatmap Values.

Specify a color to make all heatmap cells this color. The alpha value is based on the number of events or Heatmap Values.

timeline.options({
  events: { heatmapColor: '#e5989b' },
});

<Timeline
  options={{
    events: { heatmapColor: '#e5989b' },
  }}
/>

Specify an array of color values. The color of each cell is based on the number of events or the Heatmap Value. No alpha value is applied to the heatmap cells unless an rgba color is used.

timeline.options({
  events: {
    heatmapColor: ['#ef767a', '#eeb868', '#49dcb1', '#49beaa', '#456990']
    },
});

<Timeline
  options={{
    events: {
      heatmapColor: ['#ef767a', '#eeb868', '#49dcb1', '#49beaa', '#456990']
      },
  }}
/>

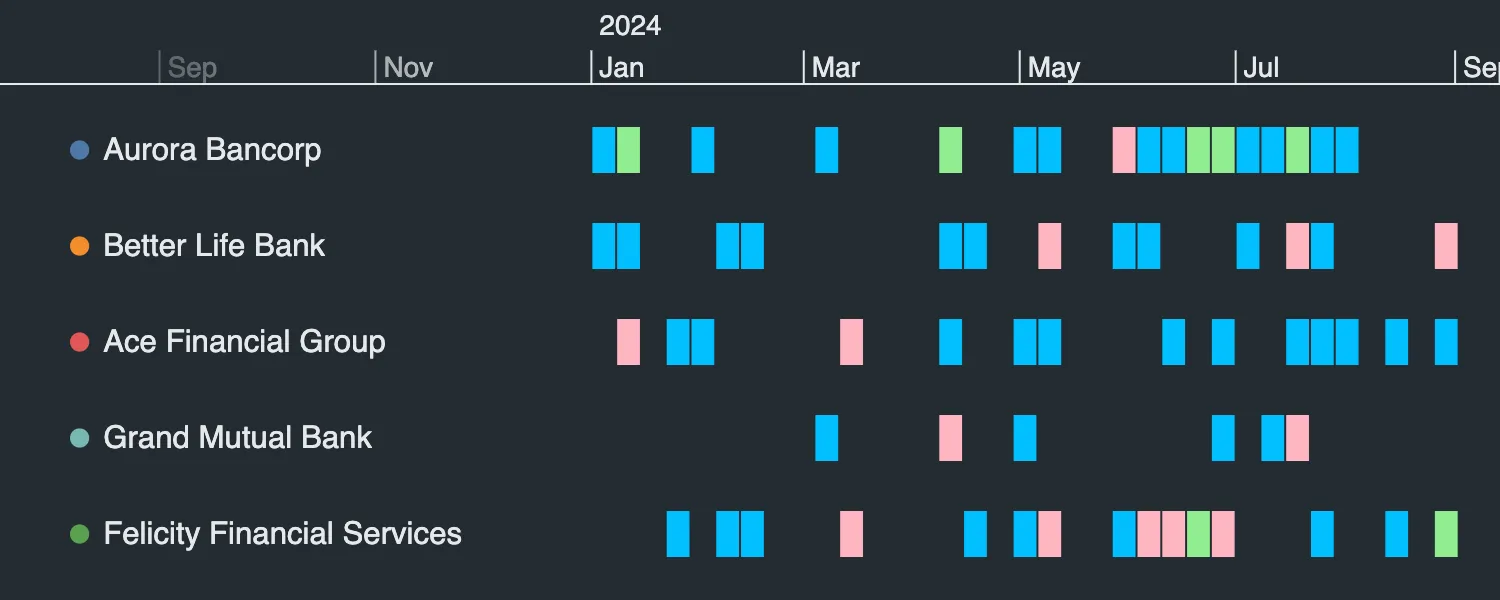

Specify a color and assign it to a range of values. The value is based on the number of events or Heatmap Values. No alpha value is applied to the heatmap cells unless an rgba color is used.

timeline.options({
  events: { heatmapColor: [
    { value: 0, color: 'deepskyblue' },
    // values up to 1.5 are blue
    { value: 1.5, color: 'lightpink' },
    // values between 1.5 and 3 are pink
    { value: 3, color: 'lightgreen' },
    // values above 3 are green
  ] },
});

<Timeline
  options={{
    events: { heatmapColor: [
      { value: 0, color: 'deepskyblue' },
      // values up to 1.5 are blue
      { value: 1.5, color: 'lightpink' },
      // values between 1.5 and 3 are pink
      { value: 3, color: 'lightgreen' },
      // values above 3 are green
    ] },
  }}
/>

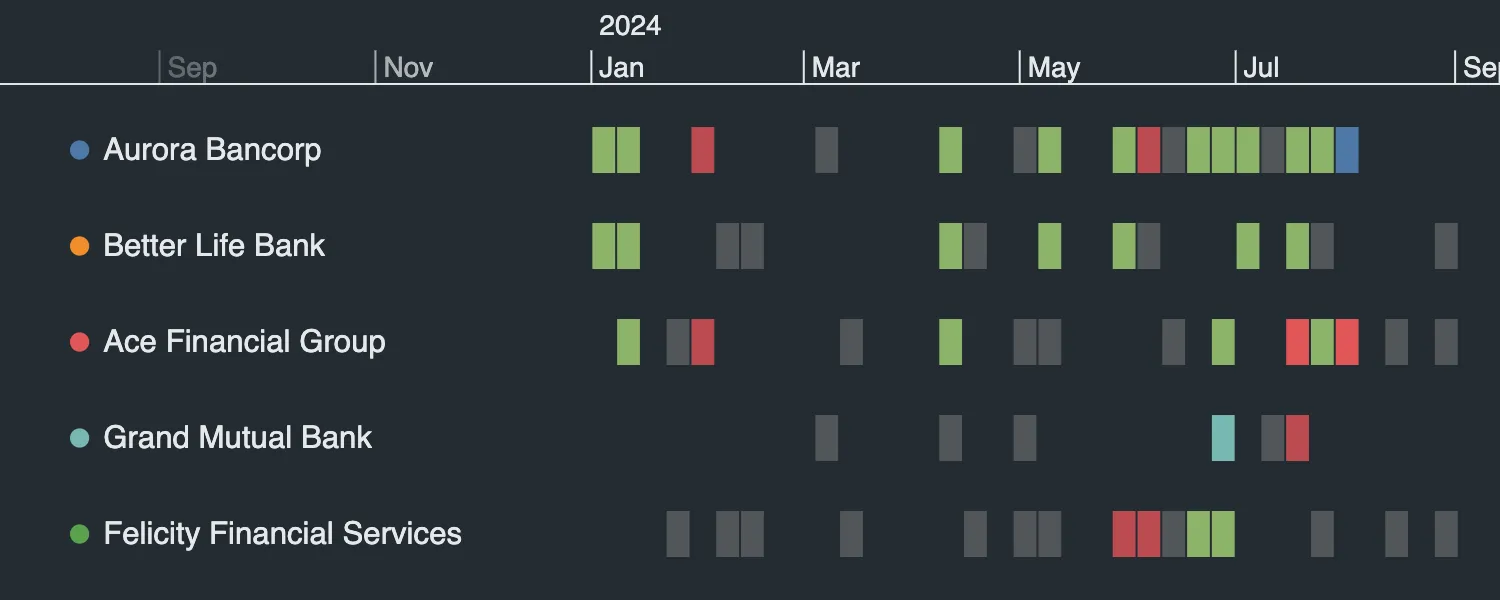

Specify a color for each event type. No alpha value is applied to the heatmap cells unless an rgba color is used.

If a heatmap cell contains events of more than one type, then its color is based on the type with the lowest index in the array.

Heatmap cells that contain events that don't have a type property assigned will use the 'default' event type color, if specified in the array.

If a heatmap cell only contains events that have a type property assigned that isn't specified in the array, it will use the average color of the events that make up that cell.

timeline.options({
  events: { heatmapColor: [
    { eventType: 'safe', color: 'rgb(140, 179, 105)' },
    { eventType: 'unsafe', color: 'rgb(188, 75, 81)' },
    { eventType: 'default', color: 'rgba(128, 128, 128, 0.5)' },
  ], },
});

<Timeline
  options={{
    events: { heatmapColor: [
      { eventType: 'safe', color: 'rgb(140, 179, 105)' },
      { eventType: 'unsafe', color: 'rgb(188, 75, 81)' },
      { eventType: 'default', color: 'rgba(128, 128, 128, 0.5)' },
    ], },
  }}
/>

See the Heatmap Colors story for more examples for this option.

Reveal Events

You can use reveal() to keep events visible when switching to heatmap view or to show events in the context of the heatmap.

Heatmap Reveal

timeline.reveal(['event2', 'event8']);

<Timeline
  reveal={['event2', 'event8']}
/>

In addition, you can use the revealHeatmapAlpha option to fade out entity rows that don't have any revealed events.

Heatmap Reveal Alpha

timeline.options({
  events: {
    revealHeatmapAlpha: 0.3
  }
});

<Timeline
  options={{
    events: {
      revealHeatmapAlpha: 0.3
    }
  }}
/>

Try it out in the Reveal story. Note that event folds are unavailable when using reveal.

Heatmap Cells

Information for heatmap cells is available via the subItem object. When the targetType is 'cell', the subItem object will be returned with the values for that cell.

timeline.on('click', (pointerEvent) => {
  if (pointerEvent.targetType === 'cell') {
    const {value, x, y, width, height} = pointerEvent.subItem;
    alert([
      `Heatmap cell at x = ${x}, y = ${y}`,
      `   Width: ${width}`,
      `   Height: ${height}`,
      `   Value: ${value}`,
    ].join('\n'));
  }
});

const handleClick = (pointerEvent) => {
  if (pointerEvent.targetType === 'cell') {
    const {value, x, y, width, height} = pointerEvent.subItem;
    alert([
      `Heatmap cell at x = ${x}, y = ${y}`,
      `   Width: ${width}`,
      `   Height: ${height}`,
      `   Value: ${value}`,
    ].join('\n'))
  }
}
<Timeline
entities={entities}
events={events}
onTimelineClick={handleClick}
/>

The subItem parameters index and time are unused by the heatmap and return undefined.

See the Heatmap Tooltips story for ideas about how to use the subItem object.
